ELECTRONIC WATER SENSOR EELS

Bateau  |  SKU: L31010
69,50
  • Temporarily unavailable

Free shipping from 150 euros

Collection location Kerkdriel possible

Orders over €150 within the Netherlands are delivered free of charge

The costs within the Netherlands are as follows:

  • Shipping for orders up to €75 costs €7.95
  • Shipping for orders over €75 costs €4.95
  • Orders over €150 within the Netherlands are delivered free of charge
  • Products with a surcharge,
    such as long freight or heavy packages: € 9.95
  • Shipping to the Wadden Islands: €9.95
  • Saturday delivery: €10.50

The following costs apply to Belgium:

  • Shipping for orders up to €100 costs €9.95
  • Shipping from €100 costs €6.95
  • Products with a surcharge,
    such as long freight or heavy packages: € 14.95

The following costs apply to Germany:

  • Standard shipping: €15.00
  • Products with a surcharge,
    such as long freight or heavy packages: € 19.95

How do you order in our webshop?

Discover all kinds of boat accessories in our webshop. We aim to deliver everything you find on the website within 5 working days, but often even within 1 working day.

Place the products you want to order in the shopping cart. You can create an account to keep your order history clear, or you can log in as a guest.

Once you have found all the desired products and added them to the shopping cart, you can complete the order.

When completing your order you will be given 2 options:

Pick up at our location in Kerkdriel, where no shipping costs will be charged, or have it delivered with the parcel service to your home address or at a Parcel Shop.

You can pay in different ways:

  • iDEAL
  • Mister Cash
  • Bank transfer

And that's it! We will be happy to get your order to you quickly.

To arrange everything properly for you and us, we use the Metaalunie conditions , feel free to read them.



Do you have a question about this product? We are happy to help you! Send us your question by email and we will answer within 24 hours. Your satisfaction comes first!

Email your question

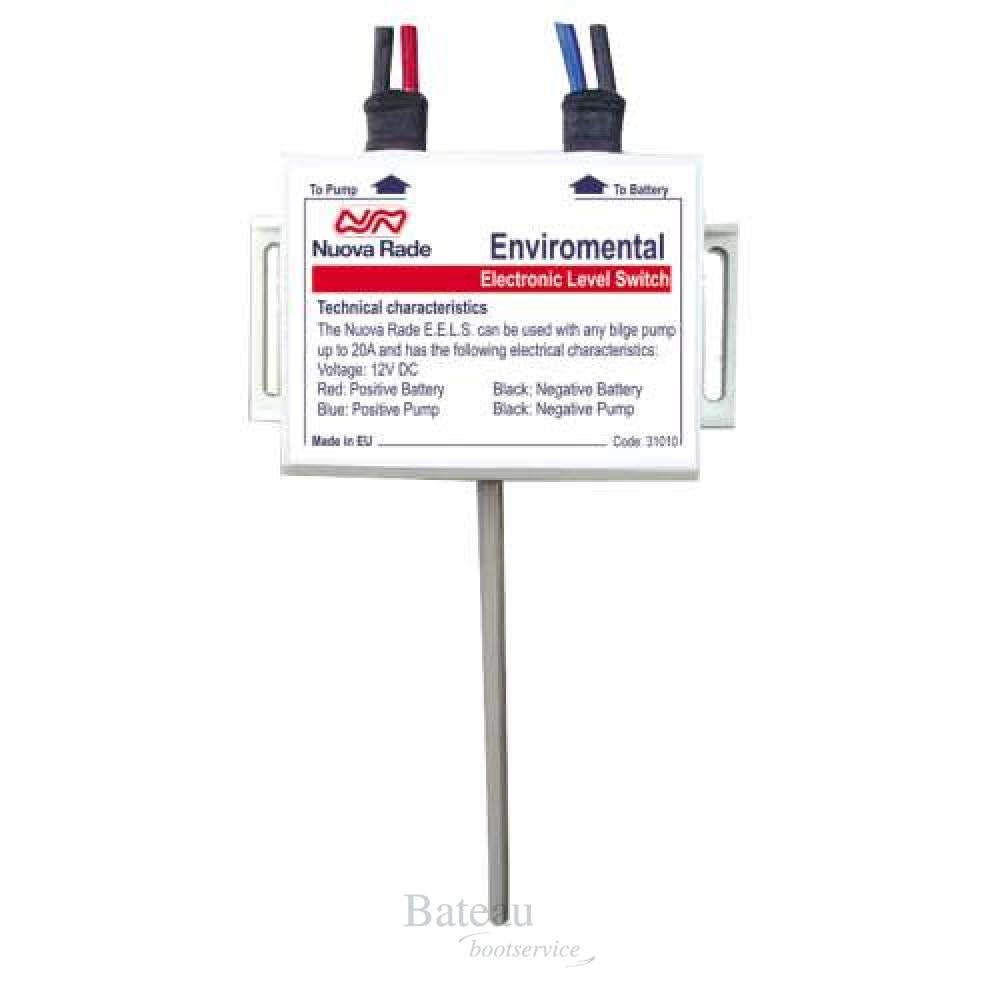

The environmentally friendly electronic level switch is the latest innovation, because it works with an electronic sensor, instead of air pressure or moving parts. It is designed to detect the water level with great precision and accuracy, giving you the best possible result. One of the main advantages of the EELS is that it is environmentally friendly. Nuova Rade designed this switch so that it only works when it detects water. If there are amounts of hydrocarbons, such as oil, it turns off the bilge pump, preventing contamination. Mounted vertically on the hull, the EELS is connected in-line to bilge pump(s) of even higher potency. The compact design also offers much greater freedom of movement. On the other hand, the minimal space it takes up on inboard ships leaves more cargo space and the hatch space intact. Other notable features include insulated electrical contacts, durable nylon and ABS plastic housing, 100% impermeable to water.

Technical properties:

The electronic level switch can be used with any bilge pump up to 20A. The electronic level switch has the following electrical characteristics:

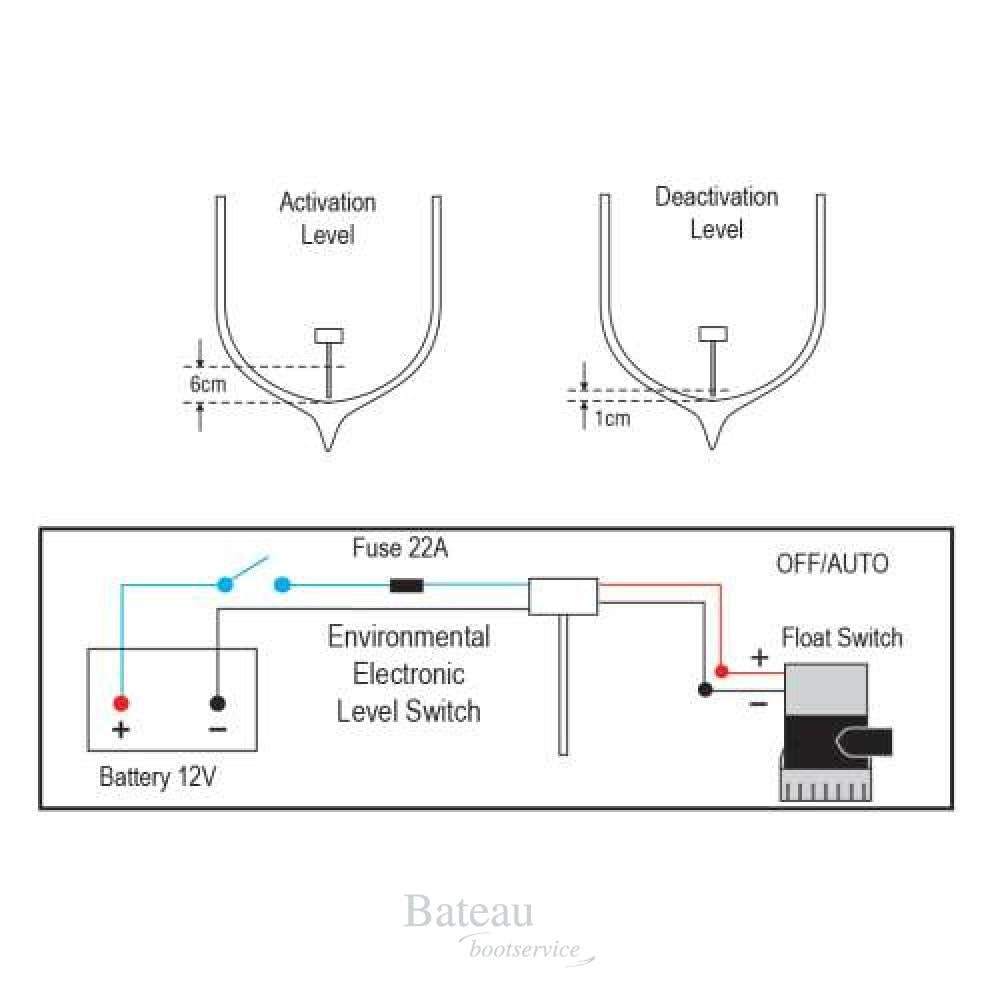

Connect a switch for activating the automatic operation of the bilge pump in-line to the positive terminal of the battery. You will also need to connect an in-line fuse depending on the amperage of the bilge pump and up to 20A max (see manufacturer's instructions). The electronic level switch wires connected to the battery terminals are RED (+) and BLACK (-). The other pair of wires, BLACK (-) and BLUE (+), connect to the negative and positive terminals of the bilge pump respectively.



WIRING

Black: negative (-)
Red – Blue: Positive (+)
Black – Red: connection to the battery
Black – Blue: connection to the bilge pump
ELECTRONISCHE WATER SENSOR EELS - Bateau Bootservice
Bateau

ELECTRONIC WATER SENSOR EELS

69,50
The environmentally friendly electronic level switch is the latest innovation, because it works with an electronic sensor, instead of air pressure or moving parts. It is designed to detect the water level with great precision and accuracy, giving you the best possible result. One of the main advantages of the EELS is that it is environmentally friendly. Nuova Rade designed this switch so that it only works when it detects water. If there are amounts of hydrocarbons, such as oil, it turns off the bilge pump, preventing contamination. Mounted vertically on the hull, the EELS is connected in-line to bilge pump(s) of even higher potency. The compact design also offers much greater freedom of movement. On the other hand, the minimal space it takes up on inboard ships leaves more cargo space and the hatch space intact. Other notable features include insulated electrical contacts, durable nylon and ABS plastic housing, 100% impermeable to water.

Technical properties:

The electronic level switch can be used with any bilge pump up to 20A. The electronic level switch has the following electrical characteristics:



Connect a switch for activating the automatic operation of the bilge pump in-line to the positive terminal of the battery. You will also need to connect an in-line fuse depending on the amperage of the bilge pump and up to 20A max (see manufacturer's instructions). The electronic level switch wires connected to the battery terminals are RED (+) and BLACK (-). The other pair of wires, BLACK (-) and BLUE (+), connect to the negative and positive terminals of the bilge pump respectively.



WIRING

Black: negative (-)
Red – Blue: Positive (+)
Black – Red: connection to the battery
Black – Blue: connection to the bilge pump
