Bow shackle stainless steel with eye bolt
Bow shackle stainless steel with eye bolt - 4mm is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Te vinden in: All products, D-shackle, Lankhorst taselaar, Mooring & anchoring
Free shipping from 150 euros
Free shipping from 150 euros
Collection location Kerkdriel possible
Orders over €150 within the Netherlands are delivered free of charge
The costs within the Netherlands are as follows:
- Shipping for orders up to €75 costs €7.95
- Shipping for orders over €75 costs €4.95
- Orders over €150 within the Netherlands are delivered free of charge
- Products with a surcharge,
such as long freight or heavy packages: € 9.95 - Shipping to the Wadden Islands: €9.95
- Saturday delivery: €10.50
The following costs apply to Belgium:
- Shipping for orders up to €100 costs €9.95
- Shipping from €100 costs €6.95
- Products with a surcharge,
such as long freight or heavy packages: € 14.95
The following costs apply to Germany:
- Standard shipping: €15.00
- Products with a surcharge,
such as long freight or heavy packages: € 19.95
How do you order in our webshop?
Discover all kinds of boat accessories in our webshop. We aim to deliver everything you find on the website within 5 working days, but often even within 1 working day.
Place the products you want to order in the shopping cart. You can create an account to keep your order history clear, or you can log in as a guest.
Once you have found all the desired products and added them to the shopping cart, you can complete the order.
When completing your order you will be given 2 options:
Pick up at our location in Kerkdriel, where no shipping costs will be charged, or have it delivered with the parcel service to your home address or at a Parcel Shop.
You can pay in different ways:
- iDEAL
- Mister Cash
- Bank transfer
And that's it! We will be happy to get your order to you quickly.
To arrange everything properly for you and us, we use the Metaalunie conditions , feel free to read them.
Stainless steel AISI 316
The name "harp shackle" is derived from the shape of the eye, which is reminiscent of a harp. Although they are often used on boats, there are numerous other situations in which a harp shackle is very useful. These shackles offer reliable security when securing a load. In addition, the harp shape has the advantage over the D-shackle that more space is available.

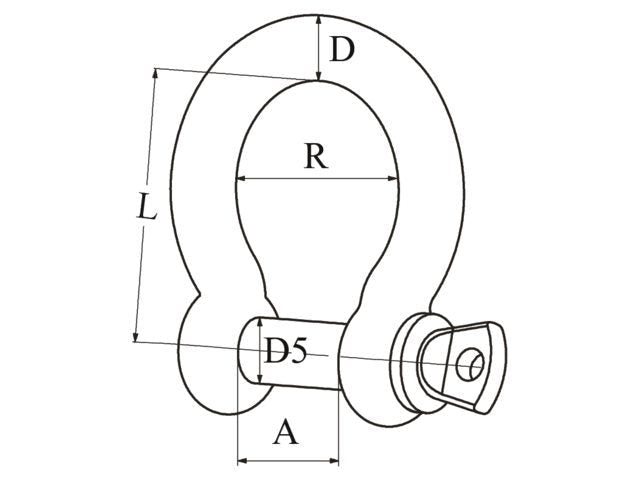

Article number | D (mm) | A (mm) | L (mm) | R (mm) | D5 (mm) | BL (daN) |
---|---|---|---|---|---|---|
08558004 | 4.0 | 8.0 | 18.0 | 14.0 | 4.0 | 577 |
08558005 | 5.0 | 10.0 | 22.5 | 17.0 | 5.0 | 910 |
08558006 | 6.0 | 12.0 | 27.0 | 21.0 | 6.0 | 1320 |
08558008 | 8.0 | 16.0 | 36.0 | 28.0 | 8.0 | 2370 |
08558010 | 10.0 | 20.0 | 45.0 | 35.0 | 10.0 | 3730 |
08558012 | 12.0 | 24.0 | 54.0 | 42.0 | 12.0 | 5490 |
